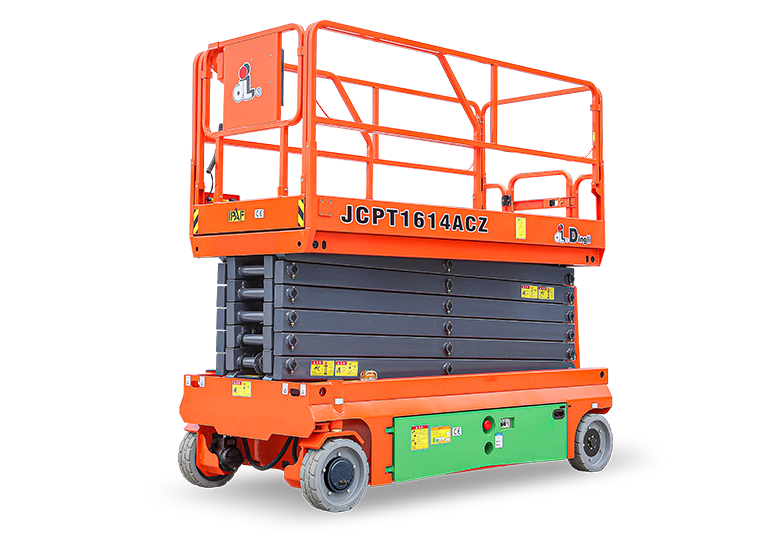

JCPT1614ACZ
Compacte schaarlift

● Battery drive, equipped with fully sealed AC system (drive and lift), replacing the traditional DC system (drive and lift), maintenance-free, more waterproof, more efficient and safer

● Automatic pothole protection system, more safe and reliable

● Unidirectional extension platform, can quickly reach the operation point

● Automatic display of fault code for easy maintenance

● Battery drive, equipped with fully sealed AC system (drive and lift), replacing the traditional DC system (drive and lift), maintenance-free, more waterproof, more efficient and safer

● Automatic pothole protection system, more safe and reliable

● Unidirectional extension platform, can quickly reach the operation point

● Automatic display of fault code for easy maintenance



  • Productparameter
  • Ondersteuning
  • Downloaden
  • Afmetingen
    Max. werkhoogte
    15.70m / 51ft 6in
    Max. platformhoogte
    13.70m / 44ft 11in
    Totale lengte (met ladder)
    2.84m / 9ft 4in
    Totale lengte (zonder ladder)
    /
    Algehele breedte
    1.39m / 4ft 7in
    Algehele hoogte (rails omhoog)
    2.62m / 8ft 7in
    Algehele hoogte (rails omlaag)
    2.09m / 6ft 10in
    Platformgrootte (lengte x breedte)
    2.64m×1.12m / 8ft 8in×3ft 8in
    Grootte platformuitbreiding
    0.90m / 2ft 11in
    Bodemvrijheid (Ingeklapt/uitgevouwen)
    0.10m/0.019m / 4in/1in
    Wielbasis
    2.24m / 7ft 4in
    Draaicirkel (binnen/buiten)
    0m/2.70m / 0in/8ft 10in
    Banden
    φ381×127mm
  • Prestatie
    Veilige werkbelasting
    350kg / 772lb
    S.W.L Aan uitbreiding
    136kg / 300lb
    Max. aantal inzittenden(binnen/buiten)
    2/1
    Gradatie
    0.25
    Verplaatssnelheid (ingeklapt)
    ≯5.0km/h / ≯3.10mph
    Verplaatssnelheid (uitgevouwen)
    ≯0.8km/h / ≯0.50mph
    Max. werkhelling(X/Y)
    1.5°/3°
    Snelheid omhoog/omlaag
    72/67sec
  • Gewicht
    Algeheel gewicht (loodaccu)
    3470kg / 7650lb
    Algeheel gewicht (lithiumaccu)
    /
  • Vermogen
    Hydraulische tank
    20L / 5.3gal
    Onderhoudsvrije loodzuuraccu
    24V/240Ah
    Lithiumaccu
    24V/220Ah
    Oplader
    24V/30A
    Aandrijfmotor
    2×15VAC/0.87kW
    Hefmotor
    16VAC/3.5kW
